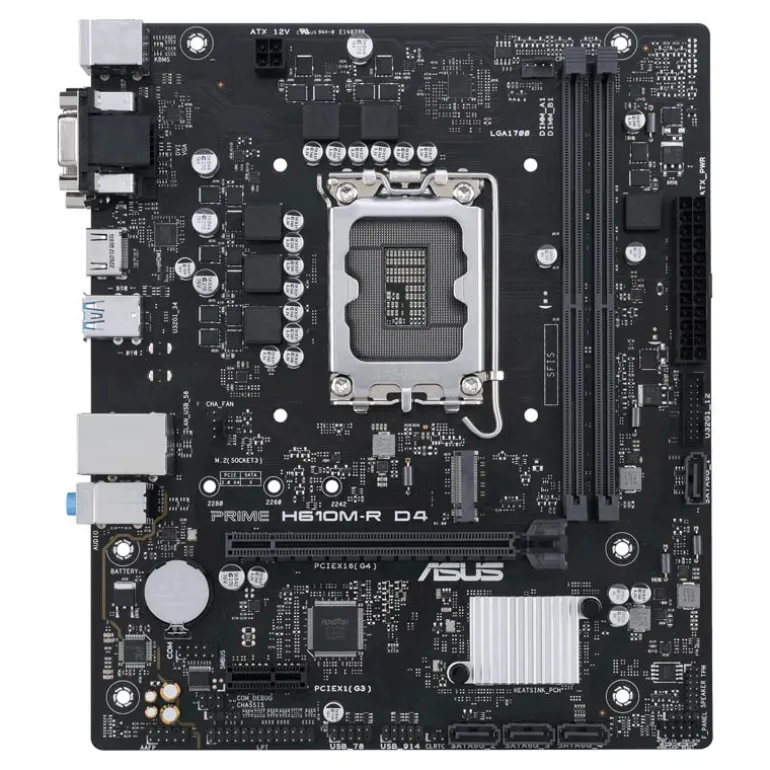

Placa Base Asus Prime H610M-R D4 Socket 1700

• Intel® Socket LGA1700 for 12th Gen Intel® Core鈩® Gold and Celeron® Processors*
• Supports up to Intel® 65W CPU
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• * Refer to www.asus.com for CPU support list.
• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel® H610 Chipset

Memory

• 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• *Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.

Graphics

• 1 x D-Sub
• 1 x DVI-D
• 1 x HDMI® port**
• * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
• ** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

• Intel® 12th Gen Processors
• 1 x PCIe 4.0 x16 slot
• Intel® H610 Chipset
• 1 x PCIe 3.0 x1 slot

Storage

• Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
• Intel® H610 Chipset
• M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
• 4 x SATA 6Gb/s ports

Ethernet

• 1 x Realtek 1Gb Ethernet

USB

• Rear USB (Total 4 ports)
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• Front USB (Total 6 ports)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• – Supports up to 24-Bit/192 kHz playback
• Audio Features
• – Audio Shielding
• – Premium audio capacitors
• – Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x D-Sub port
• 1 x DVI-D port
• 1 x HDMI® port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard (purple) port
• 1 x PS/2 Mouse (green) port

Internal I/O Connectors

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin Chassis Fan header
• Power related
• 1 x 24-pin Main Power connector
• 1 x 4-pin +12V Power connector
• Storage related
• 1 x M.2 slot (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 1 x Clear CMOS header
• 1 x Chassis Intrusion header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x LPT header
• 1 x Speaker header
• 1 x SPI TPM header (14-1 pin)
• 1 x 10-1 pin System Panel header

Special Features

• ASUS 5X PROTECTION III
• – DIGI+ VRM
• – LANGuard
• – Overvoltage Protection
• – SafeSlot Core
• – Stainless-Steel Back I/O
• ASUS Q-Design
• – Q-DIMM
• – Q-Slot
• ASUS Thermal Solution
• – Aluminum heatsink design

Software Features

• ASUS Exclusive Software
• Armoury Crate
• AI Suite 3
• – Performance And Power Saving Utility
• TurboV EVO
• EPU
• DIGI+ VRM
• ASUS CPU-Z
• Norton Anti-virus software (Free Trial version)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• – ASUS CrashFree BIOS 3
• – ASUS EZ Flash 3
• – ASUS UEFI BIOS EZ Mode
• BIOS
• 128 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x I/O Shield
• 1 x M.2 ANCHOR
• Installation Media
• 1 x Support DVD
• Documentation
• 1 x User guide

Operating System

• Windows® 11 64-bit, Windows® 10 64-bit

Form Factor

• mATX Form Factor
• 8.9 inch x 7.6 inch (22.6 cm x 19.3 cm )
